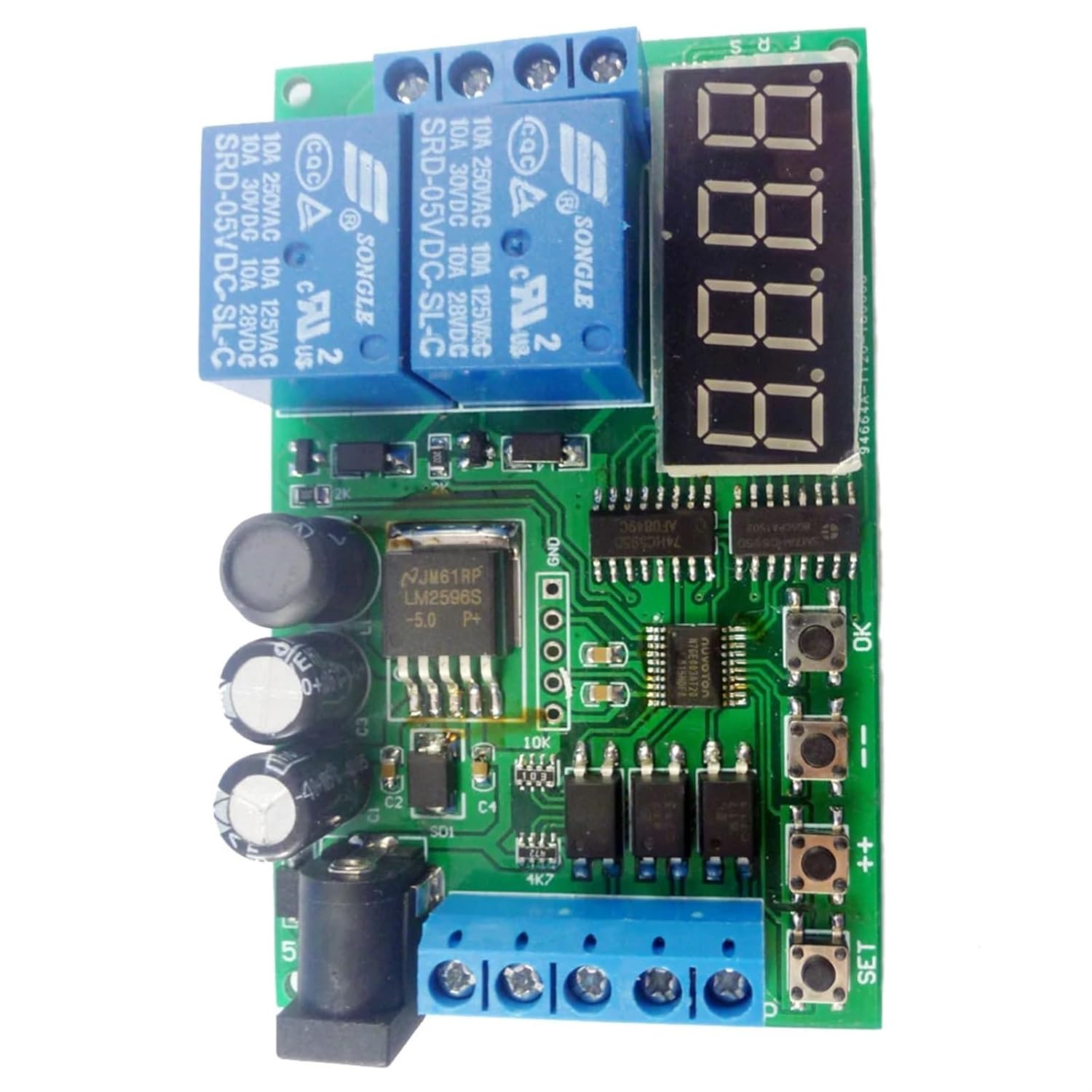

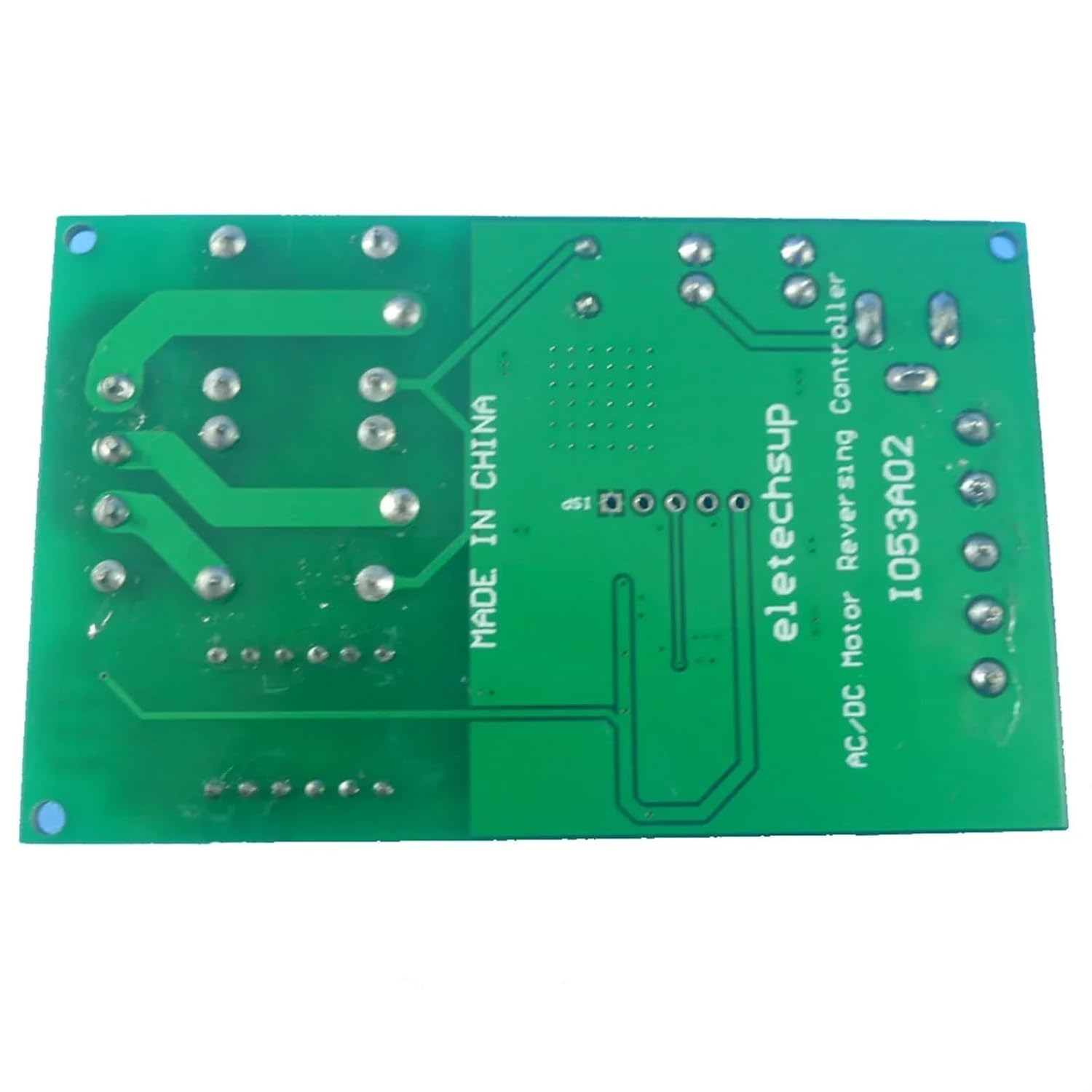

DC6.5-25V Cycle Delay Relay Module 0.1s-9999min Adjustable Time Control Switch Multifunctional Motor Forward Reverse Controller

DC6.5-25V Cycle Delay Relay Module 0.1s-9999min Adjustable Time Control Switch Multifunctional Motor Forward Reverse ControllerFeatures:1. Dual power supply (two power supplies cannot be powered at the same time): Power supply 1, 6.5-25V; Power supply 2, 5V.2. Working current: (Normal Mode) standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA.3. There are three input control port: forward control(FWD), reverse control(REV), and stop control(STOP).3. Two input trigger modes, Low-Pulse trigger mode, Low-Level trigger mode.4. Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes. Cycle times: no cycle, 2-99 cycles, always cycle.5. Three indicators: forward indicator(F LED), reverse indicator(R LED), stop indicator(S LED).6. Relay load current, recommended less than 5A.7. This is a multi-function DC/AC motor forward and reverse controller with multiple control modes. Many control functions can be derived through reasonable settings.Specification:Power Supply: 6.5-25V, 5VWorking Current: 83mAStandby Current: 41mA<;5ADelay Time: 0.1-999.9 Seconds, 1-9999 Seconds, 1-9999 MinutesSize: 8*5cm/3.2*2inWeight: Approx. 51g/1.8ozPort: 5.5 Female: Power supply 1, 5V power supplyVIN: Power 2 positive, 6.5-25V power supplyGND: Power supply 2 negativeFWD: Forward input control (partial Function-Mode is invalid)REV: Reverse input control (partial Function-Mode is invalid)STOP: Stop input control (partial Function-Mode is invalid)M+: Motor positiveM-: Motor negativeP+: Positive terminal for motor power supplyP-: Negative terminal for motor power supplyTimer:T1: Forward TimerT2: Reverse TimerT3: Stop TimerTime Unit : 0.1 Second, 1 Second, 1 MinuteRelay Action:Motor Forward: Relay 1 is ON, relay 2 is OFF, and the F LED indicator is flashing.Motor Reverse: Relay 1 is OFF, relay 2 is ON, and the R LED indicator is flashing..Motor Stop: Relay 1 is OFF, relay 2 is OFF, and the S LED indicator is flashing. Settings:Press the "++" and "--" buttons simultaneously for 5 seconds.Energy-saving mode:Press and hold the "OK" button for 5 seconds to enter the "Energy-saving mode". Press and hold the "OK" button again for 5 seconds to exit the "Energy-saving mode". Energy saving mode just turns off the digital tube and LED indicator, and other functions are normal.Function mode:F-01After power-on, the motor is forward T1 time; then the motor stops T3 time; then the motor reverse T2 time; so it is repeated Nx times. When the STOP port is triggered, the motor stops working immediately. (FWD, REV port is invalid)F-02This function is a F-01 variant. F-01 is run directly after power-on, but F-02 needs to trigger FWD or REV port to run.F-11(Trigger Reversible 1)Trigger the FWD port, the motor is forward T1 time, and automatically stops (in order to protect the motor, during the delay period, trigger the REV port to stop T3 time and then reverse T2 time, trigger FWD port to re-time T1).Trigger the REV port, the motor is reverse T2 time, and automatically stops (in order to protect the motor, during the delay period, the FWD port is triggered to stop the T3 time and then the T1 time is forward, and the REV port is re-timed T2).When the STOP port is triggered, the motor stops immediately, regardless of whether the motor is forward or reverse.F-12(Trigger Reversible 2)Trigger the FWD port, the motor is forward T1 time and stops automatically (during the delay period, except for triggering STOP port, the other ports are invalid).Trigger the REV port, the motor is reverses T2 time, and automatically stops (during the delay period, except for triggering STOP port, the other ports are invalid).When the STOP port is trigger, the motor stops immediately, regardless of whether the motor is forward or reverse.F-21When the FWD port is low level, the motor is forward, and after the FWD port is released, the motor stops.When the REV port is low level, the motor is reversed, and after the REV port is released, the motor stops.In this mode, the FWD and REV ports cannot be connected low level at the same time, and the STOP port is invalid.F-22When the FWD port is low level, the motor is forward, and after the FWD port is released, the motor stops.When the REV port is low level, the motor is reversed, and after the REV port is released, the motor stops.In this mode, the FWD and REV ports cannot be connected low level at the same time, triggering the STOP port, the motor stops immediately.Note: 1. Due to the light and screen difference, the item's color may be slightly different from the pictures.2. Please allow 1-3cm differences due to manual measurement.Package Included:1x Delay Relay Module==========
